MyEMS Introduction

MyEMS is the founder of open source energy management system. MyEMS can be used for device management, data collection, processing, analysis, visualization and reporting for your EMS projects. MyEMS is being developed and maintained by an experienced development team, and the system's source code is published under MIT license. Using open source to help achieve carbon peak carbon neutrality goals.

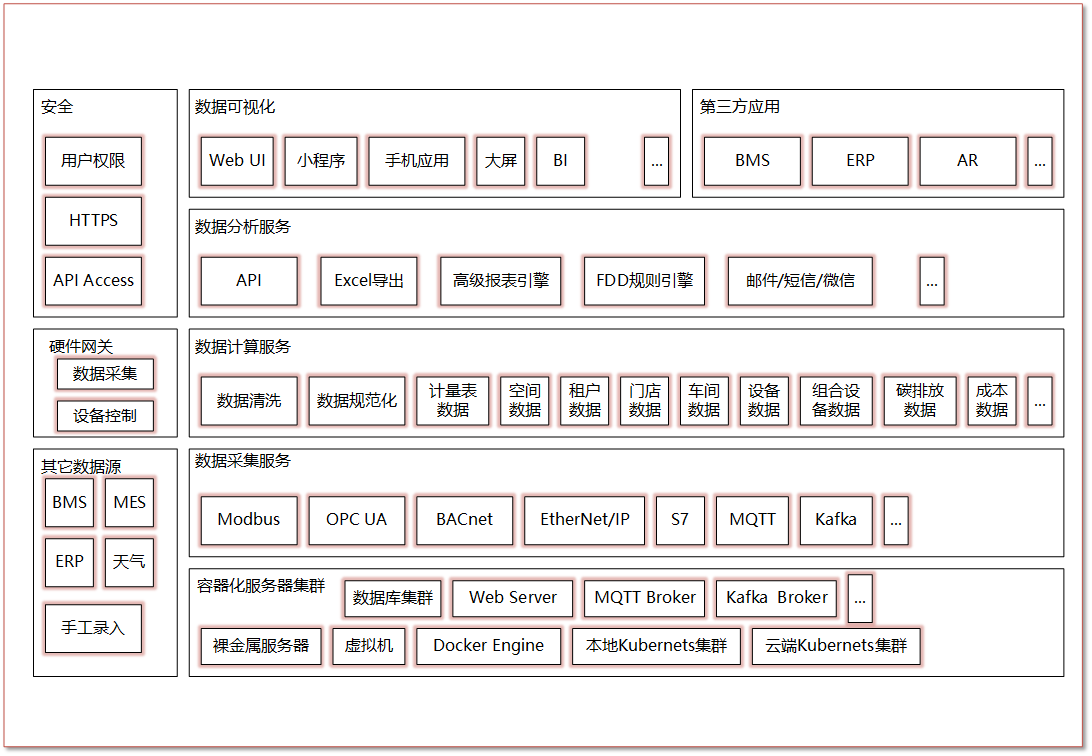

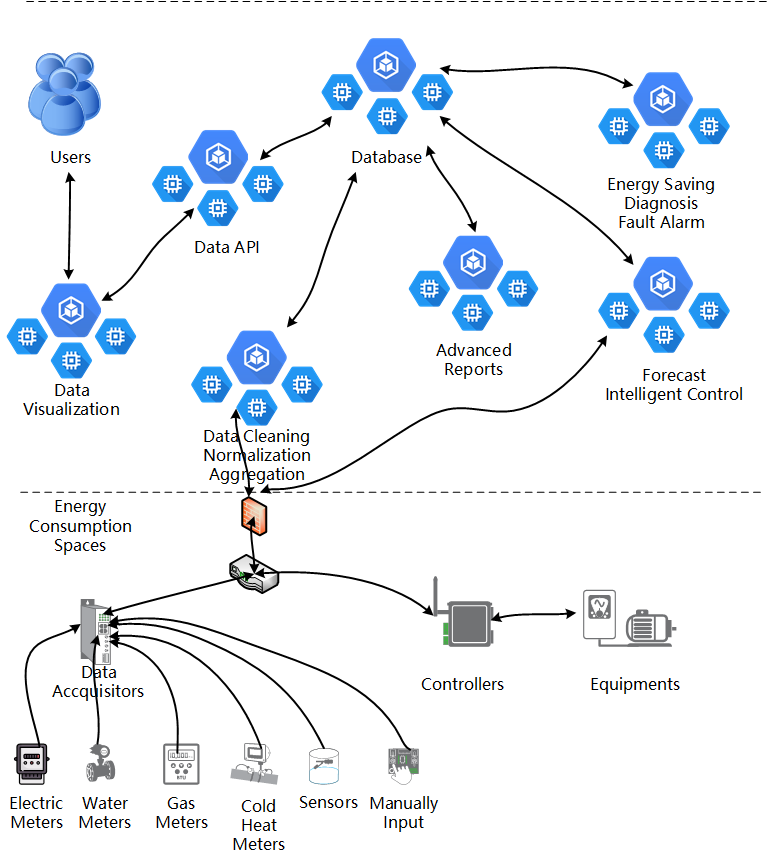

MyEMS Architecture

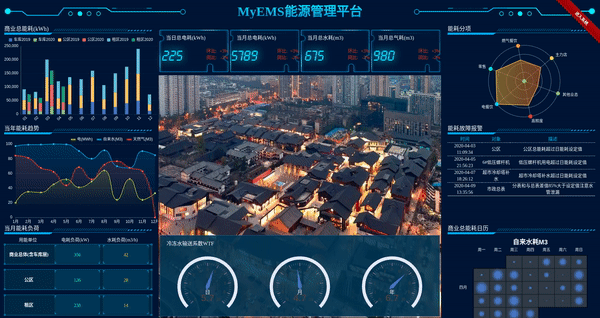

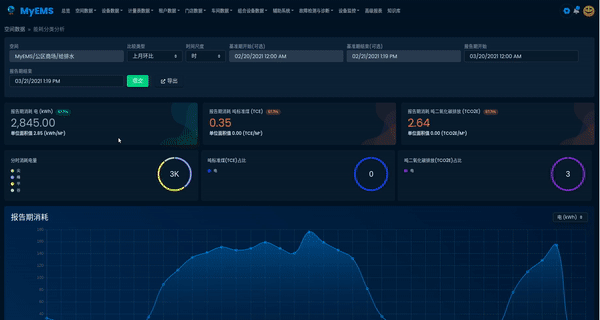

MyEMS UI Presentation

Features of MyEMS Community Edition

Features	Community Edition	Explanation
Open Source	✔️	MIT License
Pricing	Free
Change Name and Logo	❌️
Modbus TCP	✔️
Data Points Number	Unlimited	The actual number is limited by the upper limit of server resources
Meters Number	Unlimited	The actual number is limited by the upper limit of server resources
Spaces Number	Unlimited	The actual number is limited by the upper limit of server resources
Equipments Number	Unlimited	The actual number is limited by the upper limit of server resources
Tenants Number	Unlimited	The actual number is limited by the upper limit of server resources
Stores Number	Unlimited	The actual number is limited by the upper limit of server resources
Shop Floors Number	Unlimited	The actual number is limited by the upper limit of server resources
Combined Equipments Number	Unlimited	The actual number is limited by the upper limit of server resources
Docker	✔️	https://hub.docker.com/u/myems
MySQL	✔️	http://mysql.com/
MariaDB	✔️	https://mariadb.org/
SingleStore	✔️	https://www.singlestore.com/
AWS Cloud	✔️	https://aws.amazon.com/
Azure Cloud	✔️	https://azure.microsoft.com/
Alibaba Cloud	✔️	https://aliyun.com/
Private Cloud	✔️
Data Comparison	✔️	Year-on-Year, Month-on-Month, Free Comparison, None Comparison
Excel Exporter	✔️	Real Excel file, not CSV file. Tables, Line Charts, Column Charts, Pie Charts
Meter/Energy Data	✔️	Cascade select Space, Multiple Compare Types, Multiple Period Types, Reporting Period Total Consumption, Base Period Total Consumption, Reporting Period Ton of Standard Coal, Reporting Period Ton of Carbon Dioxide Emissions, Reporting Period Trend, Related Parameters Data, Detailed Data, Export to Excel
Meter/Carbon Dioxide Emissions Data	✔️
Meter/Cost Data	✔️
Meter/Trend Data	✔️
Meter/Realtime Data	✔️
Meter/Master Meter Submeters Balance	✔️
Meter/Offline Meter Energy Data	✔️
Meter/Offline Meter Cost Data	✔️
Meter/Virtual Meter Energy Data	✔️
Meter/Virtual Meter Carbon Dioxide Emissions Data	✔
Meter/Virtual Meter Cost Data	✔️
Meter/Meter Tracking	✔️
Space/Energy Category Data	✔️
Space/Energy Item Data	✔️
Space/Cost Data	✔️
Space/Output Data	✔️
Space/Income Data	✔️
Space/Efficiency Data	✔️
Space/Load Data	✔️
Space/Statistics	✔️
Equipment/Energy Category Data	✔️
Equipment/Energy Item Data	✔️
Equipment/Cost Data	✔️
Equipment/Output Data	✔️
Equipment/Income Data	✔️
Equipment/Efficiency Data	✔️
Equipment/Load Data	✔️
Equipment/Statistics	✔️
Equipment/Batch Analysis	✔️
Equipment/Equipment Tracking	✔️
Tenant/Energy Category Data	✔️
Tenant/Energy Item Data	✔️
Tenant/Cost Data	✔️
Tenant/Load Data	✔️
Tenant/Statistics	✔️
Tenant/Tenant Bill	✔️
Tenant/Batch Analysis	✔️
Store/Energy Category Data	✔️
Store/Energy Item Data	✔️
Store/Cost Data	✔️
Store/Load Data	✔️
Store/Statistics	✔️
Store/Batch Analysis	✔️
Shopfloor/Energy Category Data	✔️
Shopfloor/Energy Item Data	✔️
Shopfloor/Cost Data	✔️
Shopfloor/Load Data	✔️
Shopfloor/Statistics	✔️
Shopfloor/Batch Analysis	✔️
Combined Equipment/Energy Category Data	✔️
Combined Equipment/Energy Item Data	✔️
Combined Equipment/Cost Data	✔️
Combined Equipment/Output Data	✔️
Combined Equipment/Income Data	✔️
Combined Equipment/Efficiency Data	✔️
Combined Equipment/Load Data	✔️
Combined Equipment/Statistics	✔️
Combined Equipment/Batch Analysis	✔️
Energy Dashboard	✔️
Energy Flow Diagram	✔️
Distribution System	✔️
RESTful API	✔️	Base on Python. Providing interfaces of system configuration, energy report and excel exporter
Web UI	✔️	Based on ReactJS. Providing energy data virtualization.
Admin UI	✔️	Based on AngularJS (version 1.x). Providing system configuration.
Online Community Customer Support	✔️

Features of MyEMS Enterprise Edition

See Features of MyEMS Enterprise Edition

MyEMS Downloads (Community Edition)

[1]. Github https://github.com/myems/myems

[2]. Gitee https://gitee.com/myems/myems

[3]. Bitbucket https://bitbucket.org/myems/myems

[4]. Gitlab https://gitlab.com/myems/myems

[5]. GitCode https://gitcode.net/myems/myems

MyEMS Installation (Community Edition)

This project is compose of following components:

MyEMS Database (SQL)

See database Introduction & Installation

MyEMS API (Python)

See myems-api Introduction & Installation

MyEMS Admin UI (ReactJS)

See myems-admin Introduction & Installation

MyEMS Modbus TCP Acquisition Service (Python)

See myems-modbus-tcp Introduction & Installation

MyEMS Cleaning Service (Python)

See myems-cleaning Introduction & Installation

MyEMS Normalization Service (Python)

See myems-normalization Introduction & Installation

MyEMS Aggregation Service (Python)

See myems-aggregation Introduction & Installation

MyEMS Web UI (AngularJS)

See myems-web Introduction & Installation

Default Ports

MyEMS Web UI: 80

MyEMS API: 8000

MyEMS Admin UI: 8001

Default Passwords

Admin UI

administrator

!MyEMS1

Web UI

administrator@myems.io

!MyEMS1

Docker Compose Repaid Deployment

See Docker Compose Repaid Deployment

MyEMS Project Management

Community Edition Roadmap

Integration Testing Cooperation Plan

See Integration Testing Cooperation Plan

QQ Group
