MyEMS Introduction

MyEMS is an industry-leading open source Energy Management System. MyEMS can be used for device management, data collection, processing, analysis, visualization and reporting for your EMS projects. MyEMS is being developed and maintained by an experienced development team, and the system's source code is published under MIT license.

MyEMS Architecture

MyEMS Mirrors

[1]. Github https://github.com/myems/myems

[2]. Gitee https://gitee.com/myems/myems

[3]. Bitbucket https://bitbucket.org/myems/myems

[4]. Gitlab https://gitlab.com/myems/myems

[5]. CODE CHINA https://codechina.csdn.net/myems/myems

MyEMS Components (Community Edition)

This project is compose of following components:

MyEMS Database (SQL)

See database Introduction & Installation

MyEMS API (Python)

See myems-api Introduction & Installation

MyEMS Admin UI (ReactJS)

See myems-admin Introduction & Installation

MyEMS Modbus TCP Acquisition Service (Python)

See myems-modbus-tcp Introduction & Installation

MyEMS Cleaning Service (Python)

See myems-cleaning Introduction & Installation

MyEMS Normalization Service (Python)

See myems-normalization Introduction & Installation

MyEMS Aggregation Service (Python)

See myems-aggregation Introduction & Installation

MyEMS Web UI (AngularJS)

See myems-web Introduction & Installation

Default Ports

MyEMS Web UI: 80

MyEMS API: 8000

MyEMS Admin UI: 8001

Default Passwords

Admin UI

administrator

!MyEMS1

Web UI

administrator@myems.io

!MyEMS1

Docker Compose Repaid Deployment

See Docker Compose Repaid Deployment

Compare Editions

Features	Community Edition	Enterprise Edition	Explanation
Open Source	✔️	❌
Pricing	Free	Pay for Projects
Change Name and Logo	❌️	✔️
Modbus TCP	✔️	✔️
Data Points Number	Unlimited	Unlimited	The actual number is limited by the upper limit of server resources
Meters Number	Unlimited	Unlimited	The actual number is limited by the upper limit of server resources
Spaces Number	Unlimited	Unlimited	The actual number is limited by the upper limit of server resources
Equipments Number	Unlimited	Unlimited	The actual number is limited by the upper limit of server resources
Tenants Number	Unlimited	Unlimited	The actual number is limited by the upper limit of server resources
Stores Number	Unlimited	Unlimited	The actual number is limited by the upper limit of server resources
Shopfloors Number	Unlimited	Unlimited	The actual number is limited by the upper limit of server resources
Combined Equipments Number	Unlimited	Unlimited	The actual number is limited by the upper limit of server resources
Docker	✔️	✔️	https://www.docker.com/
Kubernetes	❌	✔️	https://kubernetes.io/
MySQL	✔️	✔️	http://mysql.com/
MariaDB	✔️	✔️	https://mariadb.org/
SingleStore	❌	✔️	https://www.singlestore.com/
AWS Cloud	✔️	✔️	https://aws.amazon.com/
AZure Cloud	✔️	✔️	https://azure.microsoft.com/
Alibaba Cloud	✔️	✔️	https://aliyun.com/
Private Cloud	✔️	✔️
Data Comparison	✔️	✔️	Year-on-Year, Month-on-Month, Free Comparison, None Comparison
Excel Exporter	✔️	✔️	Tables, Line Charts, Column Charts, Pie Charts
Meter/Energy Data	✔️	✔️
Meter/Cost Data	✔️	✔️
Meter/Trend Data	✔️	✔️
Meter/Realtime Data	✔️	✔️
Meter/Master Meter Submeters Balance	✔️	✔️
Meter/Offline Meter Energy Data	✔️	✔️
Meter/Offline Meter Cost Data	✔️	✔️
Meter/Virtual Meter Energy Data	✔️	✔️
Meter/Virtual Meter Cost Data	✔️	✔️
Meter/Meter Tracking	✔️	✔️
Space/Energy Category Data	✔️	✔️
Space/Energy Item Data	✔️	✔️
Space/Cost Data	✔️	✔️
Space/Output Data	✔️	✔️
Space/Income Data	✔️	✔️
Space/Efficiency Data	✔️	✔️
Space/Load Data	✔️	✔️
Space/Statistics	✔️	✔️
Space/Saving Data	❌	✔️	Requires Energy consumption prediction component
Equipment/Energy Category Data	✔️	✔️
Equipment/Energy Item Data	✔️	✔️
Equipment/Cost Data	✔️	✔️
Equipment/Output Data	✔️	✔️
Equipment/Income Data	✔️	✔️
Equipment/Efficiency Data	✔️	✔️
Equipment/Load Data	✔️	✔️
Equipment/Statistics	✔️	✔️
Equipment/Saving Data	❌	✔️	Requires Energy consumption prediction component
Equipment/Batch Analysis	✔️	✔️
Equipment/Equipment Tracking	✔️	✔️
Tenant/Energy Category Data	✔️	✔️
Tenant/Energy Item Data	✔️	✔️
Tenant/Cost Data	✔️	✔️
Tenant/Load Data	✔️	✔️
Tenant/Statistics	✔️	✔️
Tenant/Saving Data	❌	✔️	Requires Energy consumption prediction component
Tenant/Tenant Bill	✔️	✔️
Tenant/Batch Analysis	✔️	✔️
Store/Energy Category Data	✔️	✔️
Store/Energy Item Data	✔️	✔️
Store/Cost Data	✔️	✔️
Store/Load Data	✔️	✔️
Store/Statistics	✔️	✔️
Store/Saving Data	❌	✔️	Requires Energy consumption prediction component
Store/Batch Analysis	✔️	✔️
Shopfloor/Energy Category Data	✔️	✔️
Shopfloor/Energy Item Data	✔️	✔️
Shopfloor/Cost Data	✔️	✔️
Shopfloor/Load Data	✔️	✔️
Shopfloor/Statistics	✔️	✔️
Shopfloor/Saving Data	❌	✔️	Requires Energy consumption prediction component
Shopfloor/Batch Analysis	✔️	✔️
Combined Equipment/Energy Category Data	✔️	✔️
Combined Equipment/Energy Item Data	✔️	✔️
Combined Equipment/Cost Data	✔️	✔️
Combined Equipment/Output Data	✔️	✔️
Combined Equipment/Income Data	✔️	✔️
Combined Equipment/Efficiency Data	✔️	✔️
Combined Equipment/Load Data	✔️	✔️
Combined Equipment/Statistics	✔️	✔️
Combined Equipment/Saving Data	❌	✔️	Requires Energy consumption prediction component
Combined Equipment/Batch Analysis	✔️	✔️
Energy Dashboard	✔️	✔️
Energy Flow Diagram	✔️	✔️
Distribution System	✔️	✔️
REST API	✔️	✔️
Web UI	✔️	✔️
Admin UI	✔️	✔️
BACnet/IP	❌	✔️	http://www.bacnet.org/
MQTT Subscriber	❌	✔️	https://mqtt.org/
Modbus RTU	❌	✔️	https://modbus.org/
OPC UA	❌	✔️	https://opcfoundation.org/
OPC DA	❌	✔️	https://opcfoundation.org/
Siemens S7	❌	✔️	https://siemens.com/
IEC 104	❌	✔️	IEC 60870-5-104 https://en.wikipedia.org/wiki/IEC_60870-5
Johnson Controls Metasys API	❌	✔️	https://www.johnsoncontrols.com/
Honeywell EBI	❌	✔️	https://www.honeywell.com/
SIEMENS Desigo CC	❌	✔️	https://siemens.com/
QWeather API	❌	✔️	https://www.qweather.com/
Ingest from MySQL	❌	✔️	https://www.mysql.com/
Ingest from Microsoft SQL Server	❌	✔️	https://www.microsoft.com/en-us/sql-server/
Ingest from PostgreSQL	❌	✔️	https://www.postgresql.org/
Ingest from Oracle	❌	✔️	https://www.oracle.com/database/
Ingest from MongoDB	❌	✔️	https://www.mongodb.com/
Ingest from InfluxDB	❌	✔️	https://www.influxdata.com/products/influxdb/
FDD Rule Engine	❌	✔️	Requires standard component license or custom development
Alarm via Alibaba Cloud SMS Service	❌	✔️	https://www.aliyun.com/product/sms?userCode=8jwn6m8c
Advanced Reporting Engine	❌	✔️	Requires standard component license or custom development
Prognose des Energieverbrauchs	❌	✔️	Requires standard component license or custom development
Graphics Drawing Tool	❌	✔️
Equipments Remote Control	❌	✔️	Requires standard component license or custom development
BACnet Server	❌	✔️	http://www.bacnet.org/
Modbus TCP Server	❌	✔️	https://modbus.org/
OPC UA Server	❌	✔️	https://opcfoundation.org/
MQTT Publisher	❌️	✔️	https://mqtt.org/
iOS APP	❌	✔️	Requires standard component license or custom development
Android APP	❌	✔️	Requires standard component license or custom development
WeChat Mini Program	❌	✔️	Requires standard component license or custom development
Alipay Mini Program	❌	✔️	Requires standard component license or custom development
IPC Hardware Gateway (Data Acquisition and Remote Control）	❌	✔️	MyEMS certified industrial computer hardware
LoRa Radio Module (Data Acquisition and Remote Control）	❌	✔️	MyEMS certified LoRa hardware device
Protocol for Uploading to Provincial Platform of On-line monitoring system for Key Energy-Consuming Unit	❌	✔️	Requires standard component license or custom development
3rd Party Systems Integration Service	❌	✔️	Custom development
Online software training	❌	✔️
Face to face software training	❌	✔️
Online Community Customer Support	✔️	✔️
Email Customer Support	❌	✔️
Telephone Customer Support	❌	✔️
WeChat Customer Support	❌	✔️
Remote Desktop Customer Support	❌	✔️
Onsite Customer Support	❌	✔️
Bidding Support Service	❌	✔️
Customize Support Service	❌	✔️

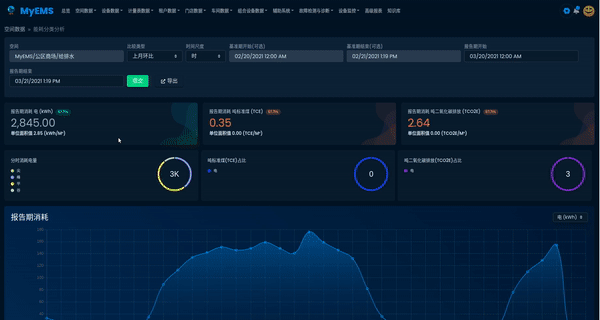

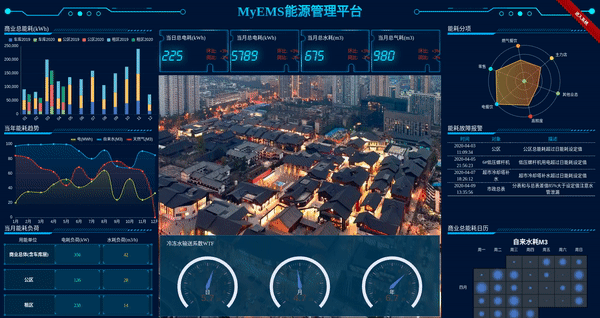

MyEMS Screenshot

MyEMS Roadmap

Community Edition Roadmap
